The application includes utilities which allow you to draw seam sections simply and intuitively.

After you draw the seam sections you can also edit the resulting stitches.

Operations such as scaling, moving and copying are possible.

The seam program which you create can then be transferred to the desired machine class using

a data storage device (such as a USB stick/flash drive).

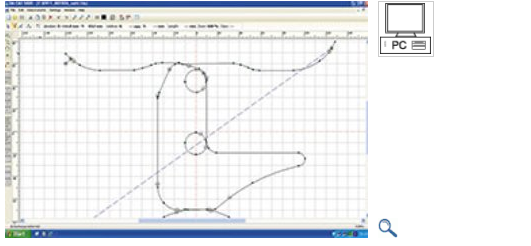

structure :



DA-CAD5000 can be used with Windows XP Professional and Windows 7





· The main menu bar: a standard pull-down menu as found in standard Windows?- applications.

· The Icon menu bar: a standard icon menu, as found in standard Windows?- applications.

· Function and information bar: for selection of the view and special functions. Drawing information is also displayed here (coordinates, class category, etc.)

· Tools menu bar: for selection of tools to draw and edit seam programs.

· Drawing box: box for drawing and editing seam programs.

· Table: shows the X and Y coordinates for seam sections, support points, stitches and action points.

· Status bar: displays context-sensitive help information, the COM interface which has been set, etc.
